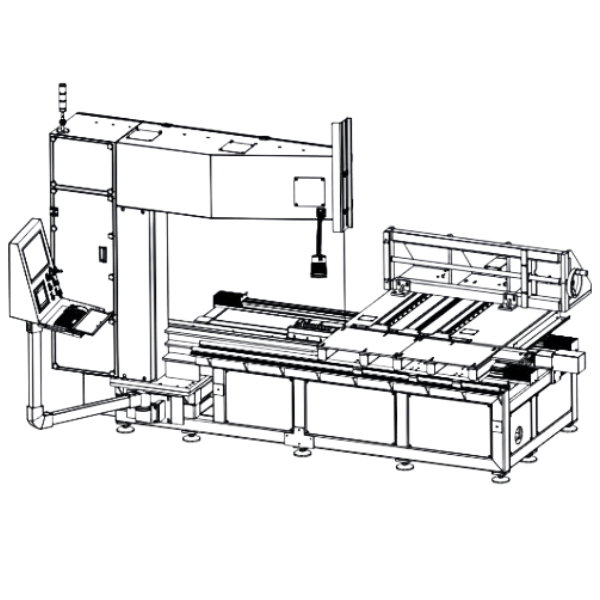

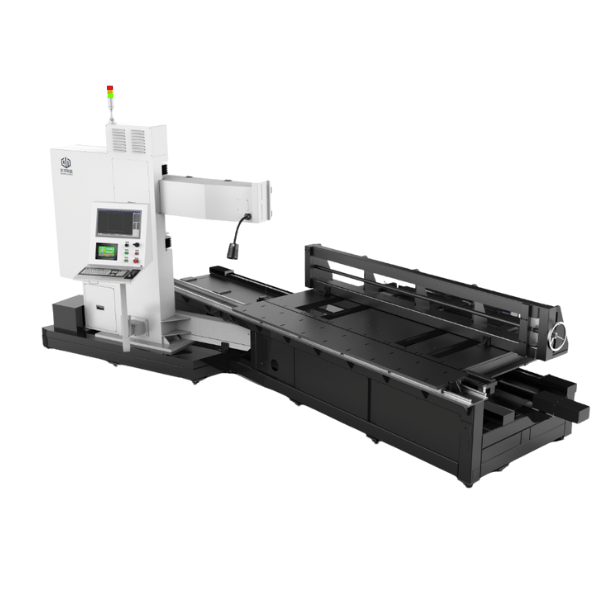

HX17060LNC Wire Saw Machine
This machine uses a high-speed diamond-coated loop abrasive wire as the cutting tool for processing carbon-carbon materials and other materials that do not require cutting fluid.
The XY two-axis rectangular coordinate configuration enables automatic slicing functions. Equipped with a wire cutting CNC system, it can control two-axis interpolation linkage to achieve two-dimensional graphic cutting of materials.
Commonly used for processing graphite insulation barrels and support feet for hot zone assembly, graphite components for outer cylinders of hydrochloric acid synthesis furnace heat exchangers, and other non-standard special-shaped graphite and carbon-carbon parts.
The equipment is equipped with internal dust collection pipelines that can be connected to external central dust collection system negative pressure pipelines.
Technical Parameters
| No. | Item | Technical Parameter |
|---|---|---|
| 1 | Maximum workpiece length (mm) | 1700 |
| 2 | Maximum workpiece width (mm) | 800 |
| 3 | Maximum workpiece height (mm) | 600 |
| 4 | Worktable X-axis stroke (mm) | 1700 |
| 5 | Worktable Y-axis stroke (mm) | 800 |
| 6 | Abrasive wire length (mm) | Approx. 7280 |
| 7 | Abrasive wire diameter (mm) | 0.35-1.0 |
| 8 | Guide wheel specification | Diameter 350mm |
| 9 | Number of guide wheel wire grooves | 4 |
| 10 | Abrasive wire linear speed (m/sec) | 84 Max |
| 11 | Drive motor power (kW) | 2.2 |
| 12 | Drive motor maximum speed (RPM) | 2840 |
| 13 | Worktable X-axis minimum feed (mm) | 0.01 |
| 14 | Worktable Y-axis minimum feed (mm) | 0.01 |
| 15 | Worktable X-axis repeat positioning accuracy (mm) | ±0.02/300 |
| 16 | Worktable Y-axis repeat positioning accuracy (mm) | ±0.02/300 |
| 17 | Special-shaped cutting capability | Yes |
| 18 | Dust extraction port diameter (mm) | 100 |
| 19 | Total machine power consumption (kW) | 5 |
| 20 | Power supply (three-phase five-wire) | AC380V 50Hz |
| 21 | Air source (MPa) | 0.6 |
| 22 | Equipment dimensions L×W×H (mm) | Approx. 4500×2400×2200 |
| 23 | Total machine weight (kg) | Approx. 3500 |
Basic Specifications
Equipment Name: Loop Wire Saw Cutting Machine
Equipment Model: HX17060LNC
Manufacturer: Shanghai Donghe Electromechanical Technology Co., Ltd.
Product Dimensions: L×W×H (mm) = 4500×2400×2200
Main Material: Steel Structure
Processing Object: Isostatic Graphite
Working Principle
- Diamond micro-powder electroplated loop abrasive wire achieves material cutting through high-speed movement driven by the wire running mechanism
- XY two-axis guide rail ball screw linear motion mechanism
- Motion axes driven by stepper motors
- PLC control + NC wire cutting control system
- Manual oil lubrication system
- Maximum prevention of processing dust overflow
- Equipped with Φ100mm dust extraction port, can be connected to central dust collection pipeline in the workshop via piping
Note: Individual parameters may be fine-tuned according to functional requirements at the time of ordering. Accurate parameters are subject to the documentation provided at delivery.
Main Components
| Component | Main Parameters | Brand | Unit | Quantity |
|---|---|---|---|---|
| Frame/Carriage | Precision steel structure | Donghe | Set | 1 |
| Workpiece clamping mechanism | Precision steel structure | Donghe | Set | 1 |
| Wire frame | Precision structural component | Donghe | Set | 1 |
| Main dust extraction port | Sheet metal | Donghe | Set | 1 |
| Full protective cover | Sheet metal | Donghe | Set | 1 |
| Linear guide rail kit | Linear guide rail | Domestic | Set | 4 |
| Precision ball screw kit | Ball screw | Domestic | Set | 2 |
| Guide wheel bearing seat kit | Bearing seat | Donghe | Set | 4 |
| Guide wheel bearing | Precision bearing | NSK or SKF | Piece | 8 |
| Pneumatic components | Cylinder/solenoid valve/pressure regulating valve/manual valve, etc. | Airtech/equivalent brand | Batch | 1 |
| PLC and expansion module | Programmable logic controller | Mitsubishi/Inovance/equivalent brand | Set | 1 |
| Touch screen | Touch screen | Domestic | Set | 1 |
| NC special-shaped control cabinet | Independent electrical cabinet (optional CNC system) | Domestic | Set | 1 |
| Wire drive motor and inverter | IP55 AC asynchronous motor and inverter | Domestic | Set | 1 |
| Control motor and driver | Stepper motor | YAKO/Leisai | Set | 2 |
| Electrical components | Protector/relay/switch/knob, etc. | Delixi/Chint/Schneider or equivalent brand | Batch | 1 |
| Guide wheel | Φ350 | Donghe | Piece | 4 |
| Abrasive wire | 7280-80 | Donghe | Piece | 1 |
