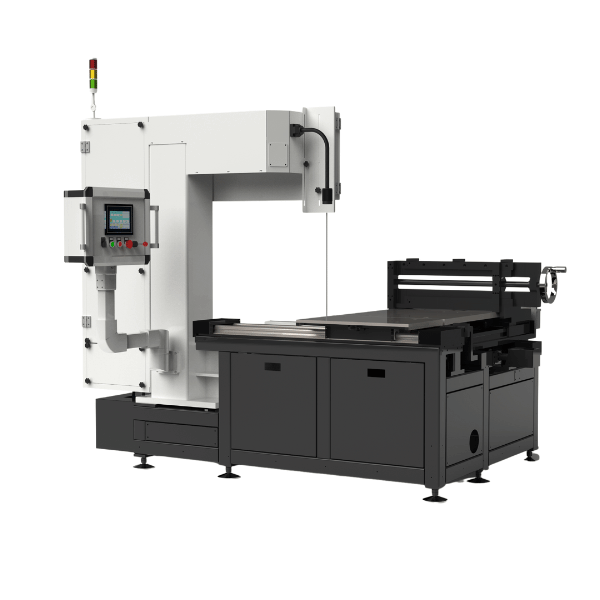

HX6060LNC Abrasive Wire Cutting Machine
This machine uses high-speed diamond ring abrasive wire as the cutting tool for processing materials such as graphite, carbon-carbon composites, and ceramics without requiring cutting fluid.
- Description
- Main Configuration & Components
- KEY DIFFERENCES: HX6060LNC vs HX6060LNCA
- Main Components List
- Technical Parameters
Key Features:
- XY two-axis rectangular coordinate configuration enables automatic slicing functions
- Dust extraction port below cutting area reduces dust overflow from cutting zone
- Internal dust collection pipeline can connect to external central dust collection system negative pressure pipeline
- Full protective enclosure included
Working Principle
- Diamond micropowder electroplated ring abrasive wire achieves material cutting through high-speed movement driven by wire mechanism
- XY two-axis guide rail ball screw linear motion mechanism
- Motion axis driven by stepper motors
- PLC + HMI + Wire Cutting NC System
- Manual oil lubrication system
- Equipped with Φ100mm dust extraction port, can be connected via pipeline to workshop central dust collection system
Summary
HX6060LNC is the enclosed version with:
- Full safety enclosure for dust containment
- Smaller guide wheels (250mm vs 350mm)
- Lower wire speed (60 m/s vs 84 m/s)
- More powerful motor (2.2kW vs 1.5kW)
- More compact footprint (2200×2200mm vs 2380×1880mm)
- Designed for 60Hz power systems
HX6060LNCA is the high-speed version with:
- Larger guide wheels for higher speeds
- 40% faster wire speed capability
- More efficient motor design
- Better suited for high-volume production
- Designed for 50Hz power systems
Main Configuration & Components
| Specification | Details |
|---|---|
| Equipment Name | Ring Abrasive Wire Cutting Machine |
| Model | HX6060LNC |
| Brand | DongheScience |
| Manufacturer | Shanghai Donghe Electromechanical Technology Co., Ltd. |
| Main Material | Steel Structure |
| Processing Object | Isostatic Graphite |
KEY DIFFERENCES: HX6060LNC vs HX6060LNCA
| Feature | HX6060LNC | HX6060LNCA |
|---|---|---|
| NC System | PLC + HMI + Wire Cutting NC | PLC + NC System |
| Profile Cutting | ✓ Yes (explicitly stated) | ✓ Yes (2D profile capability) |
| Protective Enclosure | ✓ Full protective enclosure included | ✗ Not mentioned |
| Guide Wheel Diameter | 250mm | 350mm |
| Wire Speed | 60 m/s max | 84 m/s max |
| Wire Length | ~4476mm | ~4990mm |
| Drive Motor Power | 2.2 kW | 1.5 kW |
| Equipment Dimensions | 2200×2200×1900mm | 2380×1880×1900mm |
| Power Supply | AC380V 60Hz | AC380V 50Hz |
Main Components List
| Component | Main Parameters | Brand | Unit | Qty |
|---|---|---|---|---|
| Frame/Carriage | Precision Steel Structure | Donghe | Set | 1 |
| Workpiece Clamping Mechanism | Precision Steel Structure | Donghe | Set | 1 |
| Wire Frame | Precision Structural Component | Donghe | Set | 1 |
| Main Dust Extraction Port | Sheet Metal | Donghe | Set | 1 |
| Full Protective Enclosure | Sheet Metal | Donghe | Set | 1 |
| Linear Guide Rail Kit | Linear Guide Rail | Domestic | Set | 4 |
| Precision Ball Screw Kit | Ball Screw | Domestic | Set | 2 |
| Guide Wheel Bearing Housing Kit | Bearing Housing | Donghe | Set | 4 |
| Guide Wheel Bearings | Precision Bearings | NSK or SKF | Piece | 8 |
| Pneumatic Components | Cylinders/Solenoid Valves/Pressure Regulators/Manual Valves, etc. | Airtech/Equivalent | Batch | 1 |
| PLC and Extension Modules | Programmable Logic Controller | Mitsubishi/Inovance/Equivalent | Set | 1 |
| Touch Screen | Touch Screen | Domestic | Set | 1 |
| Wire Drive Motor and Inverter | IP55 AC Asynchronous Motor and Inverter | Domestic | Set | 1 |
| Control Motor and Driver | Stepper Motor | YAKO/Leisai/Equivalent | Set | 2 |
| Electrical Components | Protectors/Relays/Switches/Knobs, etc. | Delixi/Chint/Schneider/Equivalent | Batch | 1 |
| Guide Wheels | Φ250 | Donghe | Piece | 4 |
| Abrasive Wire | 4476-80 | Donghe | Piece | 1 |
Technical Parameters
HX6060LNC Ring Wire Cutting Machine Technical Specifications
| No. | Item | Technical Parameter |
|---|---|---|
| 1 | Maximum Workpiece Length (mm) | 600 |
| 2 | Maximum Workpiece Width (mm) | 600 |
| 3 | Maximum Workpiece Height (mm) | 600 |
| 4 | Worktable X-axis Travel (mm) | 600 |
| 5 | Worktable Y-axis Travel (mm) | 600 |
| 6 | Abrasive Wire Length (mm) | Approx. 4476 |
| 7 | Abrasive Wire Diameter (mm) | 0.35-1.0 |
| 8 | Guide Wheel Specifications | Diameter 250mm |
| 9 | Guide Wheel Groove Number | 4 |
| 10 | Wire Speed (m/sec) | 60 Max |
| 11 | Drive Motor Power (kW) | 2.2 |
| 12 | Drive Motor Maximum Speed (RPM) | 2840 |
| 13 | Worktable X-axis Minimum Feed (mm) | 0.01 |
| 14 | Worktable Y-axis Minimum Feed (mm) | 0.01 |
| 15 | Worktable X-axis Repeat Positioning Accuracy (mm) | ±0.02/300 |
| 16 | Worktable Y-axis Repeat Positioning Accuracy (mm) | ±0.02/300 |
| 17 | Profile Cutting Capability | Yes |
| 18 | Dust Collection Port Diameter (mm) | 100 |
| 19 | Total Machine Power Consumption (kW) | 5 |
| 20 | Power Supply (Three-phase Five-wire) | AC380V 60Hz |
| 21 | Air Source (MPa) | 0.6 |
| 22 | Equipment Dimensions L×W×H (mm) | Approx. 2200×2200×1900 |
| 23 | Total Machine Weight (kg) | Approx. 1800 |
