Endless Diamond Wire Saw for Magnetic Materials: Complete Technology Guide

Revolutionary Precision Cutting, Applications, and Industry Benefits

The advanced material industries experience ongoing challenges because they need accurate cutting methods which become especially difficult when working with hard brittle materials that contain magnetic materials. The conventional cutting techniques create various issues which lead to material wastage and result in substandard surface finishes. The endless diamond wire saw creates a revolutionary solution which changes how people process magnetic materials. The article examines the primary advantages of the modern technology together with its applications in magnetic material cutting operations which achieve better accuracy and reduced material waste and improved surface quality.

Introduction to Endless Diamond Wire Saws

Endless Diamond Wire Saw for Magnetic Materials

Endless diamond wire saws function as specialized cutting instruments which provide precise cutting capabilities for hard brittle materials found in ceramics and silicon wafers and advanced composite materials. These saws operate through a continuous diamond-coated wire loop which moves in a steady pattern to produce accurate clean cuts that differ from traditional cutting techniques. The diamond coating provides exceptional hardness which enables efficient cutting through materials while creating minimal waste and surface damage.

What is an Endless Diamond Wire Saw?

An endless diamond wire saw functions as a precision cutting tool which uses diamond wire loops to cut through hard and brittle materials that have delicate structures. The tool uses a wire loop that contains industrial-grade diamond particles which demonstrate extreme hardness and cutting power. The diamond wire saw uses friction cutting because its diamond-coated wire moves across a material surface to cut through the material while producing only minor thermal and mechanical damage. The advanced tool serves its primary purpose in semiconductor manufacturing because it enables precise silicon wafer cutting and in aerospace applications for its ability to machine composite materials.

Key Components of the Diamond Wire Saw

Diamond-Coated Wire

Central to the system, this wire contains industrial-grade diamond particles which provide both long-lasting strength and precise cutting abilities.

Tensioning Mechanism

The system maintains wire tension at steady levels which prevents the wire from becoming loose and allows for consistent cutting results throughout the entire work process.

Drive System

The system delivers controlled movement together with speed adjustments to the wire which enables efficient and ongoing cutting operations.

Coolant System

The system circulates coolant to decrease heat production while disposing of waste materials which helps to maintain the wire and cutting material in their original condition.

Guide System

The system positions the wire to match the material’s path which allows for accurate cutting and decreases cutting errors.

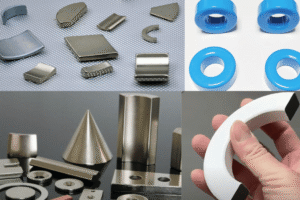

Overview of Magnetic Materials

Magnetic materials refer to substances that have magnetic properties which are dictated by their structuring and the orientation of the electrons. Three main categories of magnetic behavior are observed in these substances:

Ferromagnetic Materials

Consist of iron, cobalt, and nickel and these metals have powerful magnetic properties and can be made permanently magnetic by magnetization. They are used to make electromagnets, transformers and permanent magnets.

Paramagnetic Materials

Materials capable of being magnetic in an external field but do not retain magnetism when it is turned off. Examples include aluminum and platinum which produce weak magnetic properties.

Diamagnetic Materials

These materials exhibit very weak and negative magnetic properties. The arrangement of electrons causes them to be repelled from both edges of magnetic fields.

Applications of Endless Diamond Wire Cutting

The endless diamond wire saw is spreading its application primarily because it is effective for high precision and efficiency. At the present time, it covers the following:

▪Solar Cells: Cutting of silicon cells in thin slices so that the product is of high quality and a minimum of materials is consumed.
▪Semiconductors: Ultra-thin wafer slicing for chip fabrication and other electronic semiconductor parts.
▪Stones and Ceramics: Processing materials like granite and ceramics to achieve precise cuts.
▪Glass Cutting: Careful cutting of glass sheets for screens and optical uses.
▪Aerospace & Automotive: Creation of advanced composite and metal parts with complex shapes.

Utilizing Diamond Wire Saws in Magnetic Material Processing

Most businesses have adopted diamond saw wire technology in case of machining any magnetic materials for they have low material loss even with precise cuts. Specific characteristics of using an endless diamond wire saw for magnetic materials are as follows:

1. Efficiency in Cutting Hard Magnets

Hard magnets such as neodymium-iron-boron (NdFeB) and Samarium Cobalt (SmCo) need to be machined with precision. Tolerances of ±0.01 mm are practiced making diamond wire saws essential for maintaining structure and functionality.

2. Reduction in Volume of Wasted Materials

Extremely slender diamond wire measuring less than 0.3 mm in diameter consumes very little material in every slice when cutting magnetic blocks into thin sheets.

3. Surface Finish Requirements

Magnetic surfaces require smooth finishing without imperfections. Diamond wire sawing achieves surfaces with very low Ra down to 0.1μm, which decreases the need for additional polishing operations.

4. Enhanced Capability for Complex Geometries

Most magnetic components, especially those for e-motors and sensors are formed in specific shapes having complex profiles. Diamond wire saws enable precision cutting while maintaining holding power.

5. Ability to Machine Heat Sensitive Items

Magnetism in materials can be lost due to temperature changes. A diamond wire saw operates at low force and low temperatures to guarantee the material’s physical properties during manufacture.

6. High Scale Productivity

Diamond wire saws are manufactured in multi-wire configurations that can cut several slices simultaneously. This means high production output for any industrial-scale application.

Industries Benefiting from Wire Cutting Technologies

Eight Key Industries

Green Energy: Wire cut systems have an integral part in the manufacture of high performance parts such as wind and solar magnetic cores cut with precision for renewable energy technologies.
Telecommunications: Precision components like antennas and signal processors enable the manufacture of magnetic and conductive materials shaped and sized for compact devices.
Advanced Electronics: Wire cutting technology makes it possible to achieve high levels of thinness required for consumer electronics like mobile phones and IoT devices.
Aerospace Technology: Wire cutting processes high strength metallic alloys and composites for aircraft engine components and structural parts to assure reliability.
Automotive Manufacturing: The increasing demand in electric vehicle usage has led to increased need for accurately designed magnetic components for motors and drive-trains.
Healthcare Equipment: Wire cutting technology offers precision in the manufacture of delicate components for implants, surgical tools and diagnostic apparatus.
Tool and Die Production: Wire cutting technologies are important in manufacturing precision molds and dies for industrial applications.
Jewelry and High-End Items: High precision wire cutting is employed for making exquisite jewelry processing precious metals and stones with minimal waste.

Case Studies on Successful Implementations

Aerospace Products Manufacture

A major aerospace company used wire cutting technology to boost their turbine blade manufacturing process. Precision wire EDM ensured production tolerance within ±0.0001 inches. Production time was reduced by 15% while material waste was cut by 20%, making processes more cost feasible.

Medical Devices Manufacture

A medical equipment manufacturer applied wire cut technology in manufacturing surgical instruments. This advancement enabled complex shapes and very small parts made of stainless steel and titanium. Biocompatibility was assured resulting in 30% increase in production and reduced complications.

Automotive Manufacturing

An automobile manufacturing company employed wire EDM cutting processes to machine engine parts and gears. The process made it possible to fabricate complex forms with required precision adding to vehicle efficiency. The result was 25% improvement in manufacturing efficiency and 18% reduction of rejected parts.

Electronics and Semiconductors Production

A semiconductor manufacturing company used wire cutting technique in fabrication of micro-electronic circuits. The precision facilitated sub micrometer accuracy making it possible to create challenging designs for next generation processors with 22% retention and 10% faster time to market.

Jewelry and Luxury Items

A global luxury brand improved jewelry production through wire cutting technology. The exactitude allowed for intricate patterns with minimal material use. This ensured improved consistency and allowed for 12% increase in capacity while maintaining quality levels.

Advantages of Using Diamond Wire Cutting Machines

High Precision

Diamond wire cutting machines offer significant precision resulting in the reduction of material wastage and obtaining smooth surfaces and edges including curves.

Material Flexibility

The machine can be used to cut various kinds of materials such as metallic, ceramics and composite materials in nearly every field.

Lower Production Costs

Since there is minimal wastage of material and less need for secondary processes, the use of diamond wire saws minimizes production costs.

Durability and Longevity

Diamond wires have properties that make it possible to operate for long periods with minimal wear, therefore less maintenance is required.

Environmental Benefits

Even when used in production, very little noise is generated, low temperatures are maintained, no harmful wastes are exhausted, achieving environmental safety.

Technological Advancements in Wire Saw Cutting

The latest developments in the wire saw cutting industry have mostly revolved around the use of automation and enhancement of accuracy. Present-day equipment uses computer numerical control (CNC), ensuring precision and consistency of the cutting process. High-end sensors and systems continually monitor critical parameters – tension, speed, and blade wear – cutting under optimum conditions and minimizing the possibilities of making cuts that are out of the desired range.

Innovations in Diamond Wire Manufacturing

The current development of diamond wire technology comprises its ruggedness and increased efficiency in performing cutting tasks. This has enhanced the bonding strength between the wire and the diamond particles, extending the lifespan of the wire to a great extent. Moreover, the recent innovation of thinner wires also made it possible to achieve the desired cut while minimizing kerf loss. In photovoltaic manufacturing, there is a very strict requirement to avoid waste of material, hence the minimization of kerf loss is of great advantage. Automation helps to work with computers that control the dispersal of granules so they adhere to the wire in the same pattern each time.

Choosing the Right Endless Diamond Wire Saw

Selecting the appropriate endless diamond wire saw requires awareness of a few characteristics: the particular material in question, the size of the wire grit, and its speed. It is paramount that the saw is selected taking into account the characteristics of the material to be cut; be it a hard material such as silicon or quartz or a softer material. The precision and surface finish of the cuts also depend on the wire grit size – finer grits produce better surface qualities.

Factors to Consider When Selecting a Cutting Machine

▪Material Characteristics: Select a cutter which allows adjustment for various materials including steel, ceramics or printed circuit boards without tearing materials apart.
▪Precision Requirements: Ability to precisely make cuts, grooves and holes in any materials from soft woods to very hard metals.
▪Power and Speed: Consider the required force and assess the machine’s motor capability and rotation speed. Power should be sufficient to avoid over-working components.
▪Durability: Machine fabrication should consist of high grade durable materials for heavy usage with minimal wearing out.
▪Ease of Maintenance: Machinery with self-adjusting parts and lean maintenance costs save time on repairs and facilitate easy usage.
▪Safety Features: Consideration should be given to protective devices including emergency shutdowns, barriers, and detectors.
▪Cost Analysis: Maximal optimization of the initial investment for each particular use case should be regarded as a necessity.

Frequently Asked Questions

1. What Is an Endless Diamond Wire Saw and How Does It Operate?

An endless diamond wire saw operates through its continuous loop system which employs high-tensile steel wire that contains diamond abrasive material. The loop operates at high speed to execute cutting operations through its continuous movement in one direction. The traditional reciprocating wire saw operates through a spool-to-spool system. The endless wire system delivers unidirectional motion which allows for precise cutting operation and faster cutting speed and system performance stability.

2. What Are the Main Benefits for Magnetic Materials?

The principal advantages include enhanced cutting speed, superior surface quality, and increased wire longevity. The high, constant velocity of the endless loop system provides a substantial cutting time advantage. The unidirectional travel produces an exceptionally smooth surface which requires no secondary lapping because it eliminates all vibration and saw marks. The diamond wire operational life extends because all loop components receive equal wear distribution.

3. How Does This Technology Eliminate Thermal Risks?

The endless diamond wire saw operates as a cold cutting method. The wire generates minimal heat because its small contact area enables it to achieve high cutting efficiency. The system employs continuous coolant application which effectively removes all heat. The system maintains magnetic material temperature below the Curie point which prevents thermal shock and structural degradation while maintaining magnetic properties.

4. What Types of Magnetic Materials Are Best Suited?

This technology performs extremely well when used to process magnetic materials which exhibit high hardness and brittleness and high economic value. The material includes sintered rare-earth magnets which consist of Neodymium (NdFeB) and Samarium Cobalt (SmCo) and also includes hard ferrites and AlNiCo. The low-stress precise cutting action performs exceptionally well for preventing micro-fractures and chip production and material waste.

5. What Level of Precision and Material Loss Can Be Expected?

Endless diamond wire saws provide extreme high precision throughout their cutting operations. The technology enables extremely narrow kerf widths which typically extend from 0.1 mm to 0.4 mm to achieve minimal material waste. The stable cutting path which moves in a single direction maintains high dimensional accuracy with excellent parallelism and superior geometric integrity of the finished components.
